Phone mount and power for motorcycle navigation: the practical guide

A good navigation app on a badly mounted phone is a bad experience: unreadable at midday, flat by lunchtime, and a camera that never focuses properly again. None of that is the app’s fault, and all of it is fixable in an afternoon.

The vibration problem, first, because it costs the most

This is not internet folklore. Sustained high-frequency vibration can permanently damage the optical image stabilisation module in a phone camera — the tiny suspended lens assembly that keeps your photos sharp. Once it is damaged, it stays damaged, and it is not covered by anything.

Which bikes are worst: large singles, parallel twins, V-twins — anything with a strong high-frequency component, particularly at the revs you happen to cruise at. Inline fours are generally kinder. Rigid mounting to a crash bar or frame is worse than mounting to the bars, because the bars have a small amount of compliance and often bar-end weights damping them.

What actually helps:

• A vibration-damped mount. Ones with a genuine damping element between the cradle and the mount — a sprung or elastomeric isolator — not just a rubber pad on the back plate.
• Mount to the handlebars rather than frame or crash bar where you have the choice.
• Avoid long extension arms. The further the phone sits from the mounting point, the more the vibration is amplified at the end of the lever.
• Do not ride pinned in the buzzy rev range. If your bike has a known bad zone, that is where the damage happens.

If you have an old phone lying in a drawer, that is the ideal navigation phone — it does the job perfectly and nothing valuable is at risk.

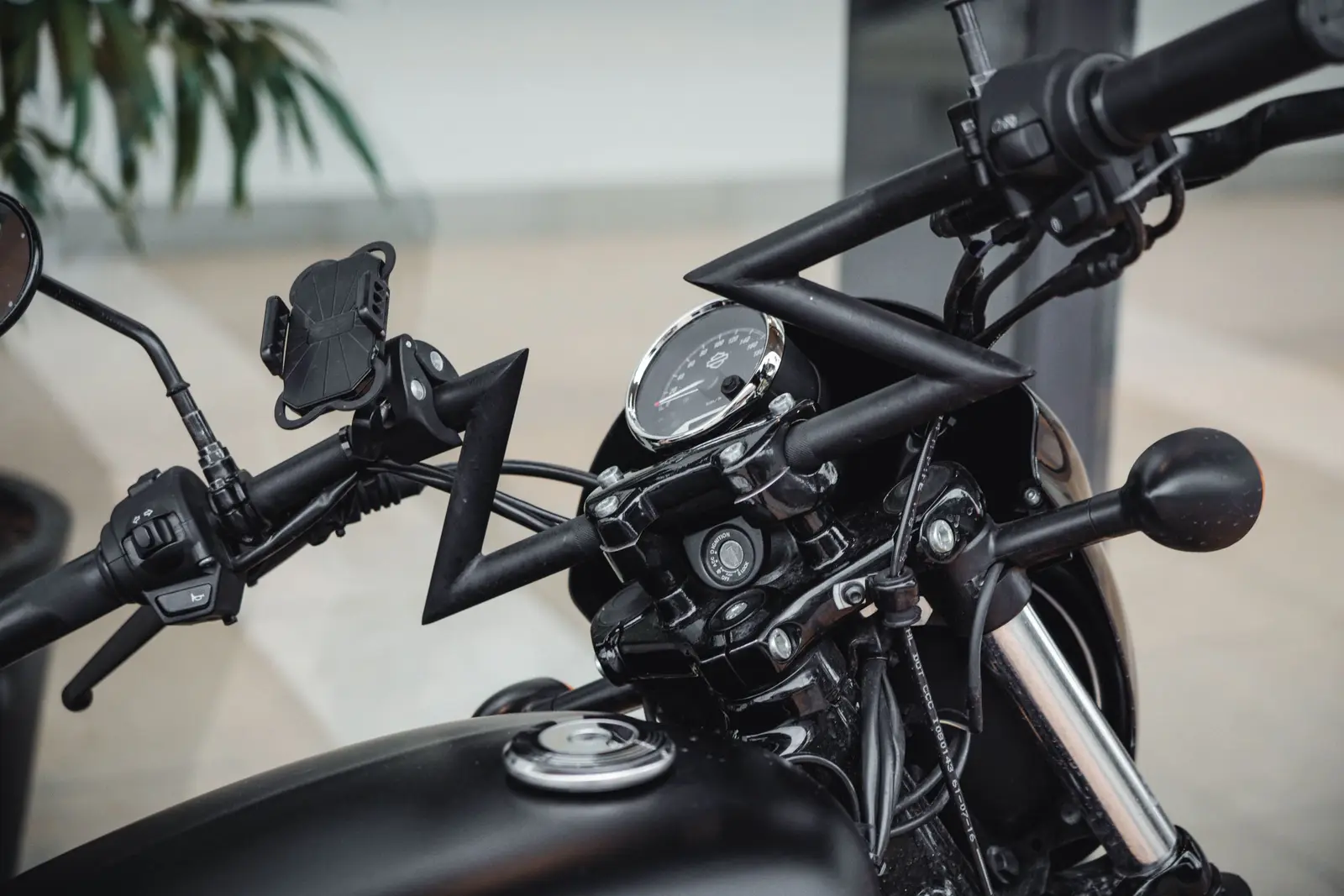

Mount position: solve glare before you blame the app

Half of “phones are useless in sunlight” comes down to angle. A screen tilted back toward the sky is a mirror for it. The same screen tilted toward your face is perfectly readable in most conditions.

The good position is low and central, roughly level with your instruments:

• In peripheral vision, so a glance is a glance rather than a head movement.
• Out of the direct wind blast, which reduces both vibration and the chance of a phone leaving the bike at speed.
• Not blocking your view of the road ahead, which a high mount always does more than the rider believes.
• Angled toward your face by 15 to 30 degrees.

Also check, before you commit: does the mount let you turn the bars lock to lock without the phone hitting the tank or the screen? Does the charging cable stay put at full lock?

Power: win the arithmetic

Screen-on navigation with continuous GPS and network activity is the heaviest sustained load a phone gets. A weak USB port supplies less than that consumes, which is how people end up with a phone that drains while plugged in.

Get it right once:

• A proper outlet. A hardwired USB-C or SAE-to-USB adapter with real output. Cheap accessory sockets frequently deliver far less than their label suggests.
• A good cable, secured. Vibration works connectors loose over months, and a cable flexing at the plug is the usual failure point. Route it so there is a small service loop rather than tension.
• Right-angle plugs where the mount is tight, so the connector is not being levered sideways every time you turn the bars.
• Wired over wireless on hot days. Wireless charging generates heat in exactly the component that is already too hot in the sun, and phones throttle when hot — dim screen, sluggish app.

If you would rather not run a cable, a power bank in a tank bag with a short cable is a decent compromise, and it keeps the heat off the phone.

Weather

Water-resistant is not waterproof, and rain at 100 km/h is a pressure test, not a sprinkle. Charging ports are the vulnerable part, because water plus a powered port is what kills phones and triggers “liquid detected” refusals to charge.

• A shower is usually fine. A sustained downpour is where a case or a cover earns its keep.
• If you use a waterproof pouch, check touch sensitivity through it before you rely on it, and note that a sealed pouch traps heat in the sun.
• Dry the port before charging after a wet ride.
• Cold kills battery percentage fast. In winter, expect meaningfully less runtime than the same ride in spring.

Settings that make a real difference

• Brightness: high enough to read, not maximum. Maximum brightness is both a battery cost and a heat source.
• Auto-lock: irrelevant while navigating, which holds the screen awake — but relevant if you are only recording a ride, where the screen locking is what causes gaps.
• Battery optimisation: turn it off for your navigation app on Android, or the system will suspend your recording.
• Do not disturb: on, so a call does not take over the screen mid-corner. Let voice prompts through to your helmet comms.
• Auto-rotate: locked to landscape or portrait, whichever your mount uses. Nothing is more irritating than a screen flipping on a bumpy road.

The setup we would actually recommend

For most riders, for around the price of a tank or two of fuel:

1. A vibration-damped bar mount with a secure cradle, positioned low and central.
2. A hardwired USB-C outlet with real output.
3. A short, good-quality right-angle cable with a service loop.
4. An older phone dedicated to the bike if you have one.
5. Screen angled toward your face, brightness at 70–80%, do not disturb on, battery optimisation off.

That combination survives daily use, rides through weather, does not eat your camera, and turns a free navigation app into something that genuinely replaces a dedicated unit for most kinds of riding.
